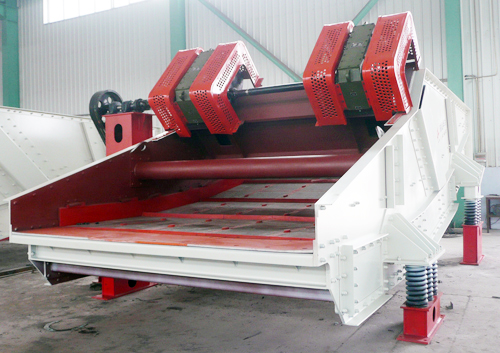

ZX Series Large Scale Banana Screen

ZX Series Large Scale Banana Screen
Description:
ZX series high-efficiency & energy-saving large scale banana screen is designed for classification of various kinds of minerals after crushing, with the feed size not more than 400mm. For example, this screen can be used in coal washing plant for classification of raw coal, dewatering, medium drainage and desliming of clean coal. It has advantages of high efficiency, low energy consumption, light weight, low noise, stable operation and high reliability etc.

Main Features:
1. The overload high-precision helical gears and special bearings for vibrating equipment ensure vibrators carrying capacity and stable operation. The special structure of sealing guarantees the lubricating oil not leak while operation. And magnetic oil plug purifying lubricating oil ensures device working safely.
2. The beams for vibrator are high strength steel plates, with dual-H structure design. The quality can meet the international welding standards.
3. The side plate adopts high-strength structural steel and high-precision CNC cutting to finish blanking and punching at one time, which can ensure the accuracy for shape and opening. The special u-shaped structural reinforcement ensures the screen body stiffness.
4. Screen box frame is riveted by high strength rivets and all the welding parts are stress relief, which can ensure the reliability of product running.

Specifications:

Model	Screen Mesh				Feed size (mm)	Frequency (Hz)	Amplitude (mm)	Capacity (t/h)	Weight (kg)	Motor power (kw)
	Layer	Width×Length (m)	Mesh opening (mm)	Mesh area (m2)
ZXF4392/6	1	4.3×9.2	6-100	39.56	≤300	14.16	5±0.5	600-3000	41860	2×55
ZXF4261/5	1	4.2×6.1	6-100	25.62	≤300	14.16	5±0.5	460-2300	30270	75
ZXT4392/6	1	4.3×9.2	0.5-50	39.56	≤100	14.16	5±0.5	360-1200	40955	2×55
ZXT4261/5	1	4.2×6.1	0.5-13	25.62	≤100	14.16	5±0.5	300-500	29850	75
ZXF3673/6	1	3.6×7.3	6-100	26.28	≤300	14.83	5±0.5	440-2200	25728	55
ZXF3661/5	1	3.6×6.1	6-100	21.96	≤300	14.83	5±0.5	400-2000	23458	55
ZXT3673/6	1	3.6×7.3	0.5-13	26.28	≤100	14.83	5±0.5	290-500	25975	55
ZXT3661/5	1	3.6×6.1	0.5-13	21.96	≤100	14.83	5±0.5	240-430	22313	55
2ZXT3661/5	2	3.6×6.1	0.5-50	2×21.96	≤300	14.83	5±0.5	300-1000	32430	75
ZXF3073/6	1	3.0×7.3	6-100	21.9	≤300	14.83	5±0.5	300-1800	22289	45
ZXF3061/5	1	3.0×6.1	6-100	18.3	≤300	14.83	5±0.5	330-1700	19085	45
ZXT3073/6	1	3.0×7.3	0.5-13	21.9	≤100	14.83	5±0.5	240-420	20707	45
ZXF3061/5	1	3.0×6.1	0.5-13	18.3	≤100	14.83	5±0.5	200-360	18502	45
2ZXT3061/5	2	3.0×6.1	0.5-50	2×18.3	≤300	14.83	5±0.5	250-800	25933	55
ZXF2461/5	1	2.4×6.1	6-100	14.64	≤300	14.83	5±0.5	260-1400	14642	30
2ZXF2461/5	2	2.4×6.1	6-100	2×14.64	≤300	14.83	5±0.5	260-1400	20843	45
ZXT2461/5	1	2.4×6.1	0.5-13	14.64	≤100	14.83	5±0.5	160-290	14025	30
2ZXT2461/5	2	2.4×6.1	0.5-50	2×14.64	≤300	14.83	5±0.5	180-520	20329	45
ZXF1861/5	1	1.8×6.1	6-100	10.98	≤300	14.83	5±0.5	200-640	11210	22
2ZXF1861/5	2	1.8×6.1	6-100	2×10.98	≤300	14.83	5±0.5	200-640	16783	37
ZXT1861/5	1	1.8×6.1	0.5-13	10.98	≤100	14.83	5±0.5	120-210	11057	22
2ZXT1861/5	2	1.8×6.1	0.5-50	2×10.98	≤300	14.83	5±0.5	130-400	16590	37
