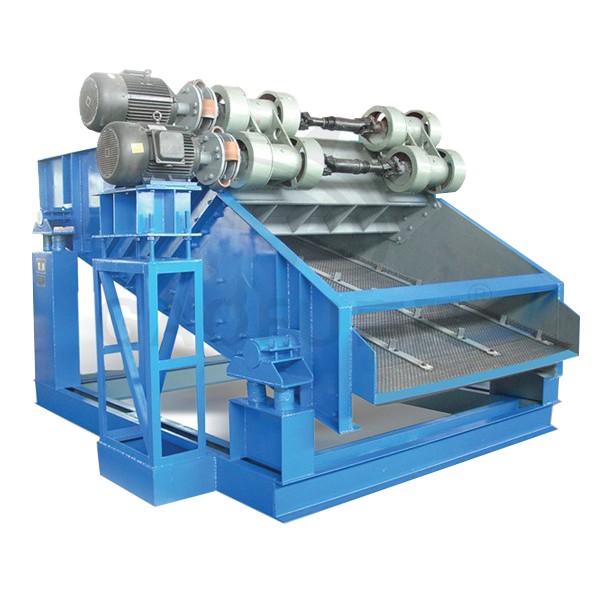

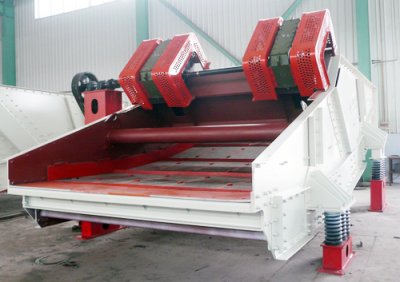

ZSG Series Heavy Vibrating Screen

ZSG Series Heavy Vibrating Screen
Description:
ZSG heavy vibrating screen is a new type of high efficient universal screening equipment, and the motion trajectory of the screen box is approximate to a straight line. The series of sieve machine has the advantages of simple structure, screening large capacity and low energy consumption, easy maintenance. It is widely used for medium and small granular materials classification in mines, coal, electric power, metallurgy, building materials, refractory industries etc.
The power device of the linear vibrating screen has two forms: vibration motor direct drive and exciter indirect drive through the coupling by motor, which could meet the needs of different environments. The material of screen mesh has metal screen, bar, casting, welding, punching and so on, and sieve surface of both single-layer and multilayer arrangement, meet the requirements of different screening operations.

Features:
·         High screening efficiency.
·         High capacity and reliability.
·         Long bearing lifetime.
·         Easy maintenance.

Exciting Source Can be Chosen. There are two kinds of exciting source to be chosen, one is vibrating motor, and the other one is common motor drive exciting vibrator (exiter type).

Specifications:

Vibrating motor type

Model	Screen area	Screen slope	Feed size	Opening	Capacity	Frequency	Double amplitude	Motor
	m2	°	mm	mm	t/h	Hz	mm	Model	Power (Kw)	Voltage (V)
ZSGB-0615	0.9	10	<150		10-100	16	6-9	YZO-10-6	2*1.0	380 (could be customized)
ZSGB-0918	1.62	10			15-160			YZO-20-6	2*2.0
ZSGB-1020	2	15			15-200			YZO-20-6	2*2.0
ZSGB-1224	2.88	10		3	25-300			YZO-30-6	2*2.5
ZSGB-1030	3	15		5	35-360			YZO-30-6	2*2.5
ZSGB-1230	3.6	15		10	40-400			YZO-50-6	2*3.7
ZSGB-1530	4.5	15		15	45-460			YZO-50-6	2*3.7
ZSG2B-0615	0.9	10		20	10-100			YZO-10-6	2*1.0
ZSG2B-0918	1.62	10		25	15-160			YZO-20-6	2*2.0
ZSG2B-1020	2	15		50	15-200			YZO-20-6	2*2.0
ZSG2B-1224	2.88	10			25-300			YZO-30-6	2*2.5
ZSG2B-1030	3	15			35-360			YZO-30-6	2*2.5
ZSG2B-1230	3.6	15			40-400			YZO-50-6	2*3.7
ZSG2B-1530	4.5	15			45-460			YZO-75-6	2*5.5

Exiter type

Model	Screen area	Screen slope	Feed size	Opening	Capacity	Frequency	Double amplitude	Exciter model	Motor
	m2	°	mm	mm	t/h	Hz	mm		Model	Power (Kw)	Voltage (V)
ZSGB-1536	5.4	15	<200		50-360	12	8-12	JZ-75-6	Y160M1-8	2×4.0	380 (could be customized)
ZSGB-1540	6	15			50-400			JZ-75-6	Y160M1-8	2×4.0
ZSGB-1836	6.48	15			60-460			JZ-100-6	Y160M2-8	2×5.5
ZSGB-1550	7.5	15		3	70-400			JZ-100-6	Y160M2-8	2×5.5
ZSGB-1848	8.64	15		5	80-500			JZ-130-6	Y160M2-8	2×5.5
ZSGB-2040	8	15		10	80-560			JZ-130-6	Y160M2-8	2×5.5
ZSGB-2050	10	15		15	90-600			JZ-160-6	Y160L-8	2×7.5
ZSG2B-1536	5.4	15		20	50-360			JZ-100-6	Y160M1-8	2×5.5
ZSG2B-1540	6	15		25	50-400			JZ-100-6	Y160M1-8	2×5.5
ZSG2B-1836	6.48	10		50	60-460			JZ-130-6	Y160M1-8	2×5.5
ZSG2B-1550	7.5	15			70-400			JZ-130-6	Y160M1-8	2×5.5
ZSG2B-1848	8.64	15			80-500			JZ-180-6	Y160L-8	2×7.5
ZSG2B-2040	8	15			80-560			JZ-180-6	Y160L-8	2×7.5
ZSG2B-2050	10	15			90-600			JZ-200-6	Y160L-8	2×7.5
