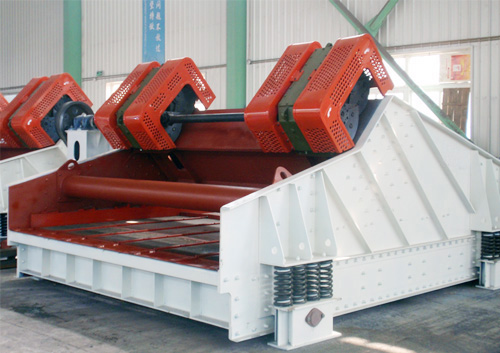

ZKK Series Large Scale Horizontal Vibrating Screen

ZKK Series Large Scale Horizontal Vibrating Screen
Description
ZKK Series High-efficiency & Energy-saving Large Scale Horizontal Vibrating Screen is generally for primary grinding and grading, replacing spiral classifier and cyclone, which improves grading efficiency and reduces circulating load of mill. The feed size should be less than 100mm.

Main Features:
1. The overload high-precision helical gears and the special imported bearings for vibrating equipment ensure the vibrator working stability and reliability.
2. The beams for vibrator are high strength steel plates, with dual-H structure design. The quality can meet the international welding standards.
3. The screen mesh beams are high-strength structural steel plates with rectangular cross-section structure design. The part where deck contacts with material is protected by painted polyurea or wear-resistant rubber glue.
4. High-precision polyurethane mesh decks with high aperture ratio wear resistance, and has long service life.

Specifications:

Model	Screen Mesh				Feed size (mm)	Capacity (t/h)	Weight (kg)	Motor power (kw)
	Layer	Width×Length (m)	Mesh opening (mm)	Mesh type
ZKK3045	1	3.0×4.5	0.5-13	a, b, c, d, e	≤50	100-165	13590	37
ZKK3052	1	3.0×5.2	0.5-13	a, b, c, d, e	≤50	115-190	14355	37
ZKK3061	1	3.0×6.1	0.5-13	a, b, c, d, e	≤50	135-225	16284	45
ZKK3645	1	3.6×4.5	0.5-13	a, b, c, d, e	≤50	120-200	16710	45
ZKK3652	1	3.6×5.2	0.5-13	a, b, c, d, e	≤50	135-230	18297	45
ZKK3661	1	3.6×6.1	0.5-13	a, b, c, d, e	≤50	160-270	19582	55
ZKK3675	1	3.6×7.5	0.5-13	a, b, c, d, e	≤50	195-325	21925	55
2ZKK3052	2	3.0×5.2	first layer:3-50 second layer:0.5-13	first layer:c,d,e second layer: a,b	≤100	230-400	21063	55
2ZKK3061	2	3.0×6.1	first layer:3-50 second layer:0.5-13	first layer:c,d,e second layer: a,b	≤100	270-460	22971	55
2ZKK3652	2	3.6×5.2	first layer:3-50 second layer:0.5-13	first layer:c,d,e second layer: a,b	≤100	270-480	23739	55
2ZKK3661	2	3.6×6.1	first layer:3-50 second layer:0.5-13	first layer:c,d,e second layer: a,b	≤100	320-560	25231	75
2ZKK3675	2	3.6×7.5	first layer:3-50 second layer:0.5-13	first layer:c,d,e second layer: a,b	≤100	390-650	28572	75
