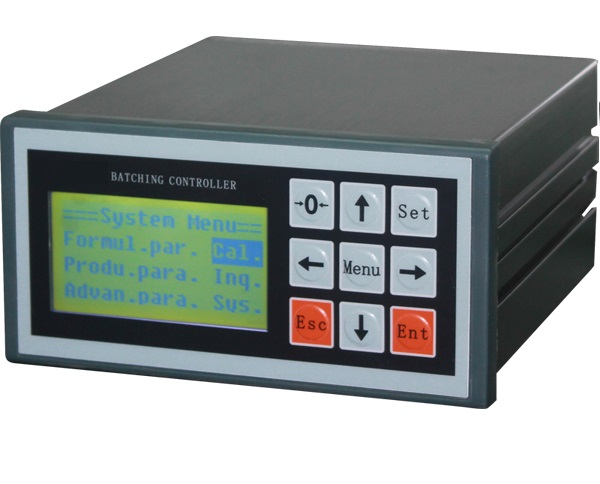

HM500F1 Check-weigher Controller
HM500F1 check-weigher controller is mainly used as control part of an automatic weighting and sorting equipment which is installed in a material packaging production line to test weights of packaging materials. Weight limits need to be preset. When tested material flows through the carrying mechanism, JY500F1 check-weigher controller will group the material in line with the preset weight limits and drive the actuator to sort the material.
Features:
● Lattice LCD with English words.
● Two material weight acquisition modes, i.e. weight capture and switch capture.
● Can preset 5 weight limits and output 6 sorting control signals in delay sorting mode or 15 weight limits in instant grouping mode.
● Weight limits expressed in weight, difference, percentage, etc.
● 18 I/O (10 inputs/8 outputs) for motion detecting and control signal output.
● Shifts setting for easy yield statistics.
● Realize no-real-object calibration.
Parameters:
|
Basic parameters |
|
|
Display device |
128*64 lattice LCD |
|
External dimensions |
159 (W) x 167 (D) x 81(H) mm |
|
Weight |
About 1.2 kg |
|
Scale interval |
1, 2, 5 and 10 |
|
Number of divisions |
1,500, 2,000, 2,500, 3,000, 4,000, 5,000, 6,000 and 10,000 |
|
Decimal point display of weight |
0, 0.0, 0.00 and 0.000 |
|
Weight unit |
g, kg and t (gram, kilogram and ton) |
|
Performance indexes |
|
|
Static accuracy grade |
Meet third-class weighing instrument requirement. |
|
Maximum signal input range |
0.1mV ～ 20 mV |
|
Initial zero range |
0.1mV ～ 20 mV |
|
Maximum sensitivity |
1.5μV/d (filter factor =1) or 0.75μV/d (filter factor =30) |
|
Noise at the input end |
≤0.5μVp-p (filter factor =1), or ≤0.25μVp-p (filter factor =30) |
|
Analog input impedance |
≥20MΩ |
|
Nonlinear error |
≤0.002%FS |
|
A/D conversion speed |
100 SPS |
|
Operating parameters |
|
|
Form of communication interface |
RS485 |
|
Communication distance |
≤1000m |
|
Baud rate of communication |
2400, 4800, 9600, 19200 and 57600 |
|
Type of the weighing sensor |
Resistance strain weighing sensor |
|
Excitation voltage of the sensor |
DC 5V, 100mA, up to 4 parallel 350Ω sensors |
|
Digital output |
Transistor type: DC 24V / 0.5A |
|
Digital input voltage |
DC24V |
|
Digital input current |
4--6mA |
|
Operating conditions |
|
|
Power supply |
AC 220V (AC175-245V), 50Hz/60Hz |
|
Power |
≤10W |
|
Operating temperature |
-10°C～40°C |
|
Humidity |
≤ 90% RH (no condensate) |
Dimension:
