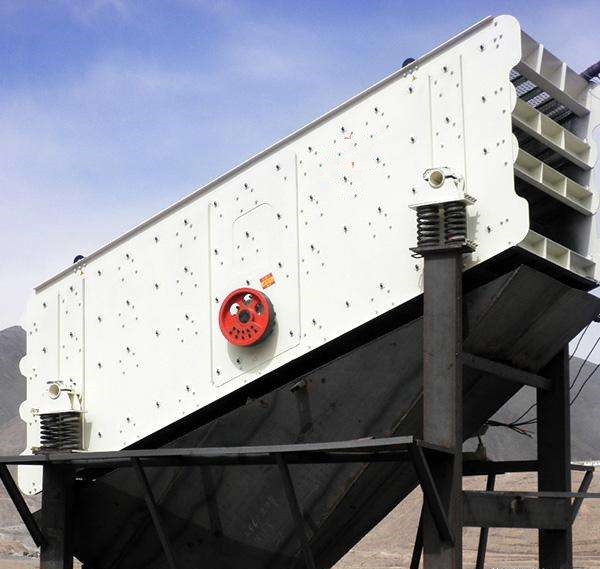

CVS series circular vibrating screen
Description:
CVS series circular vibrating screen, also called circular-motion vibrating screen, is used to classify medium to coarse-grained bulk materials (5.0 mm to 100 mm) for screening. Single, double and triple layers are available. This series machine is driven by dual axises and dual motors, which ensures it with stronger force, larger capacity and higher efficiency than normal circular vibrating screens.
Working principle：
Circular vibrating screens operate using indirect excitation of the screen mesh. The entire screen frame is driven by unbalance masses, which produce a circular vibrating motion.
Another key feature: The directionless vibrations of the circular vibrating system have a steep launch angle and the screen area must be further tilted in order to achieve a suitable transport speed. The optimum angle has been proven to be 15° to 30° in practice.
Specifications:
|
|
Model |
Screen deck size (mm) |
|
Model |
Screen deck size (mm) |
|
single |
CVS 1836 |
1800×3600 |
double |
CVS 1845D |
1800×4500 |
|
CVS 1848 |
1800×4800 |
CVS 2160D |
2100×6000 |
|
CVS 2448 |
2400×4800 |
CVS 2448D |
2400×4800 |
|
CVS 2460 |
2400×6000 |
CVS2460D |
2400×6000 |
|
CVS 3048 |
3000×4800 |
triple |
CVS3075T |
3000×7500 |
|
CVS 3060 |
3000×6000 |
CVS 3675T |
3600×7500 |
Note: customized service is available according to customer site requirement.
