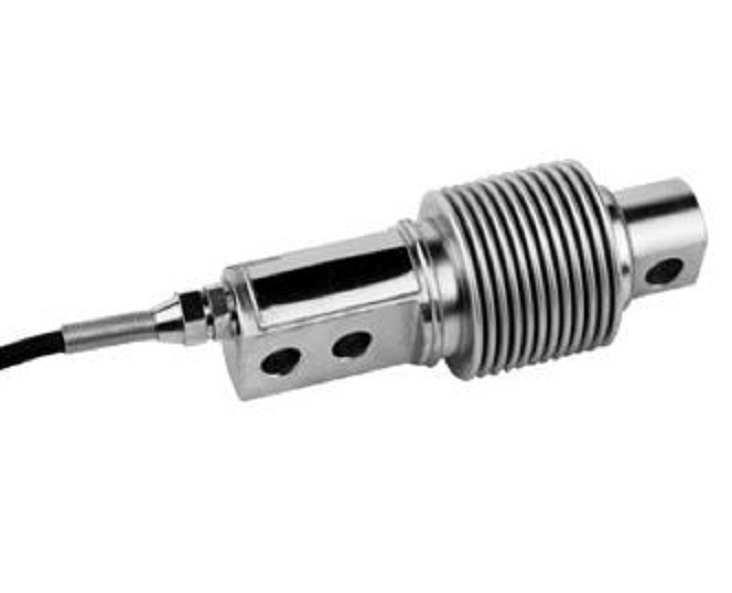

HSX Bellows type Load Cell for Belt Scale
FEATURES:
●Capacity 5kg to 500kg
●OIML C3 certificate
●Stainless steel, Alloy steel
APPLICATION:
●Belt scale
●Hopper scale
|
Outline Dimension:
|
|
Rated capacity
|
L
|
L1
|
L2
|
L3
|
L4
|
L5
|
H
|
H1
|
C
|
C1
|
C2
|
C3
|
|
5~250
|
120
|
10
|
82
|
18
|
20
|
44
|
20
|
20
|
Φ8.2
|
Φ25.5
|
Φ32
|
Φ45
|
|
300~500
|
120
|
10
|
82
|
18
|
20
|
44
|
20
|
20
|
Φ10.2
|
Φ25.5
|
Φ32
|
Φ45
|
|
SPECIFICATION:
|
|
|
Rated capacity: 5kg to 500kg
|
Operating temperature range: -30 to +70℃
|
|
Rated output:2.0±0.002mv/v
|
Maximum safe overload；120% OF R.C
|
|
Combined error：C3
|
Ultimate safe overload；150% OF R.C
|
|
Non-repeatability：±0.02% F.S
|
Recommended Excitation；10 to 12V DC
|
|
Non-linearity：±0.02% F.S
|
Maximum Excitation；15V DC
|
|
Hysteresis error：±0.02% F.S
|
Environment protection: IP68
|
|
Zero balance: ±1% F.S
|
Input impedance: 400±20Ω
|
|
Creep error(30minutes): ±0.02% F.S
|
Output impedance: 352±3Ω
|
|
Temperature effect on zero: ±0.02% F.S
|
Insulation resistance at 50V DC: ≥5000MΩ
|
|
Temperature effect on output: ±0.02% F.S
|
Material: nickel-plated alloy steel
|
|
Compensated temperature range: -10 to +40℃
|
|
