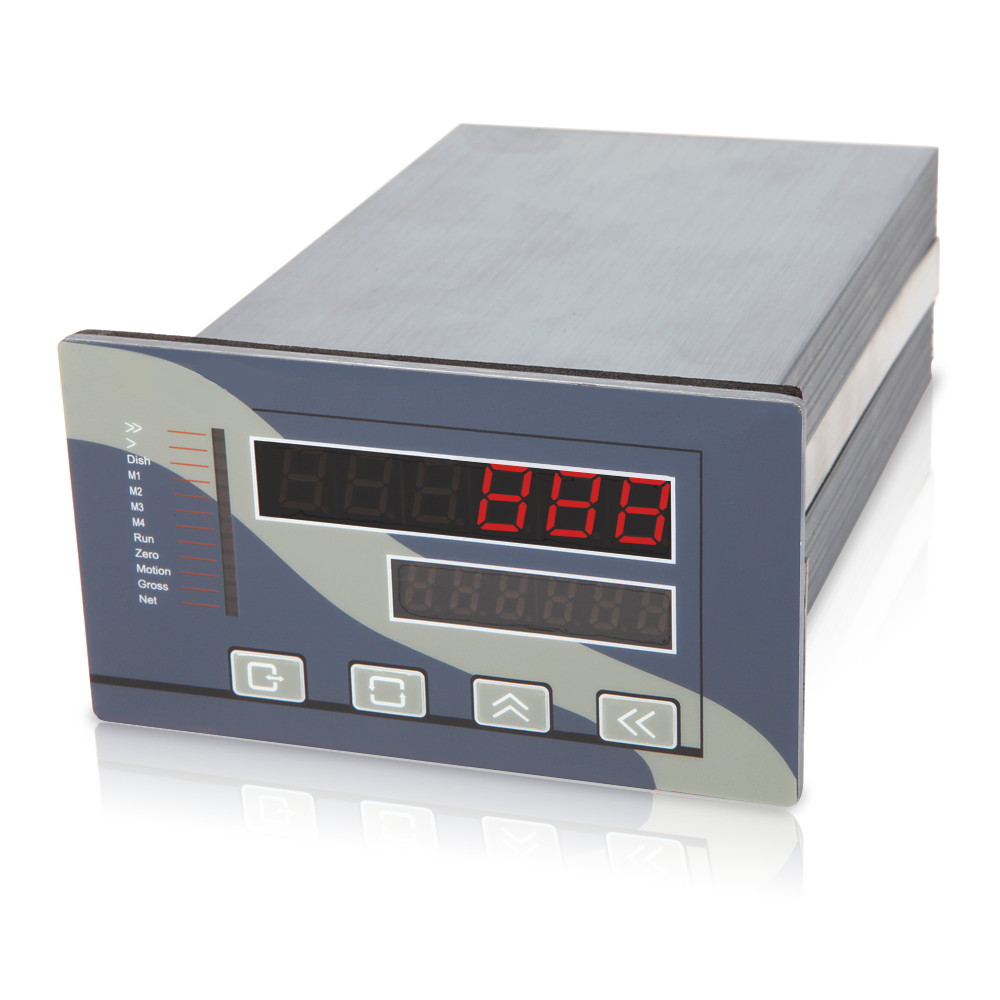

HM500A4 Batching Weighing Controller
HM500A4 Batching controller , applied in high speed and high precision weighing control occasion.
Main Features:
◆Congregating weighing, display, communication and control in one.
◆Switching power, Voltage range: AC 185--265V
◆ With Analog and digital dual filtering function.
◆Automatic error diagnosis, easy to determine the fault.
◆ Ingredients manual / automatic switching function.
◆Batching process at any time to pause, pause, cancel and continue Ingredients.
◆Automatic zero tracking function
◆Power auto-zero function.
◆Batching start auto-zero function.
◆4 kinds ingredients can be controlled.
◆All material has a compensation function jog.
◆Support adjusting at any time to modify recipes.
◆Automatic accumulated material consumption.
◆With automatic collision momentum and delay function.
◆Manual/automatic gap setting and revising function.
◆Password Authoration function.
◆Zero, Tare, Over load, Tolerance range and Filtering strength can be setted.
◆Date, time display and setting function.
Parameters:
|
Interior resolution ratio |
≦500000 |
|
Power supply |
AC220V±20％,50HZ±2％ |
|
Sampling rato |
≦200Times/sec |
|
Product capacity |
≦10W |
|
Temperature coefficient |
≦0.005％/℃ |
|
Working ambient degree |
-10℃～40℃ |
|
Nolinear error |
≦0.01％FS |
|
Working ambient humidity |
≦90％Relative humidity (without condensation of water） |
|
Input sensitivity |
≦0.5uV |
|
Instrument keyboard |
A total of four sound button |
|
Sensor exaction source |
DC8V,200mA |
|
Display mode |
12 digital tube and 12 light indicator |
|
Sensor port input impedance |
≧20MΩ |
|
Display range |
0~59999 arbitrary input |
|
Sensor zero voltage range |
-10mV～10mV |
|
Display index number |
≦15,000 |
|
Communication port |
RS232 communication with the printer |
|
Display division value |
1,2,5,10,20,50 can choice |
|
Control contact capacity |
Relay output AC220V/3A
Transistor output DC24V/0.3A |
Dimension:
